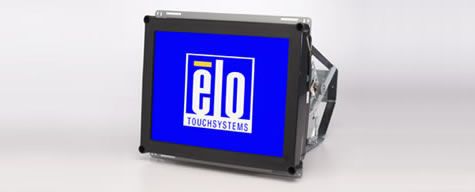

1788C 17" CRT Open Frame Touchscreen (Discontinued November 2006)
Overview
Elo IntelliTouch® Zero-Bezel touch-on-tube open-frame CRTs are the right choice for your public access or industrial application because they are easily integrated, reliable, sealed, and deliver the ultimate in picture quality, at an optimal price.
Open-frame CRTs reduce or eliminate the need for redesign by providing a much longer model life than plastic case CRTs. At the same time, they provide the reliability and ruggedness required for operation in an indoor public environment. Featuring the breakthrough Elo IntelliTouch Zero-Bezel touch-on-tube technology and no overlay to break, your application will have the best picture quality and vandal resistance possible on a touch CRT. A final benefit is the watertight sealed bezel that stays in place when the cabinet front is opened.
Features
- True flat CRT for easier integration and modern appearance
- Computer-grade digital design and video quality
- Unique IntelliTouch Zero-Bezel touch-on-tube technology preserves 100% of the original brightness, picture quality, and color purity, with up to 80% less reflection than some overlays
- Super sensitive, drift free and precise touch with no parallax from an overlay
- Open-frame metal chassis keeps the CRT cooler, extending life
- Fixed outside dimensions-model life is longer than plastic-cased monitors (3D design files available)
- Bezel includes watertight 0.5 mm seal
- Rugged epoxy composite PCB material (CAM-1)
- Schematic and component-level repair manual available, plus entire electronics can be quickly replaced
- Built-in power, deflection and video test with diagnostic pin and LEDs
- Multilingual on-screen display (OSD) with long cable length for easy relocation
- Detachable video cable for easy cable harnessing
- Locking power connector
- Worldwide agency approvals
Spécifications
-
Technique
Référence(s)
IntelliTouch ZB (Antireflective, Worldwide) - D07427-000
Couleur du boîtier
Noir
Technologie et fonctionnalités tactiles
SAW sans cadre (ondes acoustiques de surface IntelliTouch®) - Touche unique
Interface tactile
Serial
Taille de l’écran (diagonale)
Diagonale de 17”, matrice active TFT LCD (LED)
Affichage à l’écran (OSD)
Multilingual OSD
Format d’image
4:3
Zone active
Horizontal: 11.8" / 300 mm
Vertical: 8.9" / 225 mmRésolution
1024 x 768 at 85 Hz
Autres résolutions prises en charge
1024 x 768 at 85 Hz
800 x 600 at 85 Hz
640 x 480 at 60 HzNombre de couleurs
16.7 millions
Taux de contraste
300:1
Format vidéo d’entrée
Analog (no proprietary video card needed)
Connecteur du signal vidéo d’entrée
Mini D-Sub 15-Pin (female)
Alimentation électrique
100-240 VAC, 50-60 Hz
Fréquence d’entrée
Horizontal: 30-70 kHz
Vertical: 50-160 HzConsommation électrique (standard)
65 W typical, 75 W max.
Dimensions
15.9" x 13.5" x 16.1" / 403 mm x 343 mm x 410 mm
Poids (non emballé)
37.5 lbs / 17.0 kg
Poids (emballé)
45.0 lbs / 20.4 kg
Température de fonctionnement
5°C to 55°C
Température de stockage
-20°C to 65°C
Humidité
Operating: 10% to 80%
Storage: 5% to 95%
noncondensingTemps moyen entre défaillances
50 000 heures démontrées
Garantie
Contactez Elo
Homologations et déclarations
FCC/ICES-03 Class B, UL/cUL recognized component, TÜV Bauart, CE, VCCI, C-Tick, MPR II, DHHS, Demko
Câbles d’alimentation
A special locking power cable is required. Power cables which may be suitable are available separately: North American version; European version.
Accessoires en option
Replacement Board Set: Elo P/N: D92272-000. Available at additional cost.
Brackets & Bezel Kits
Open-Frame Adaptor Bracket: Elo P/N: A44380-000.
For base-mounting solutions. Available at additional cost.Câbles tactiles/vidéo
Detachable touch and video cables are included
