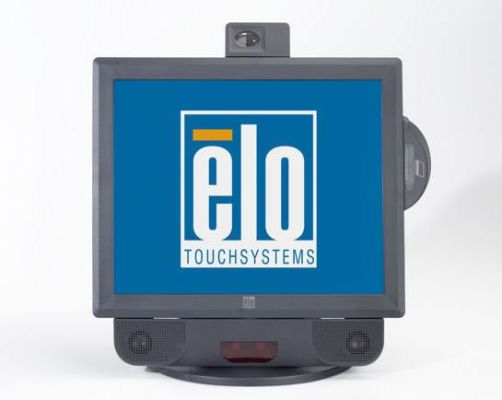

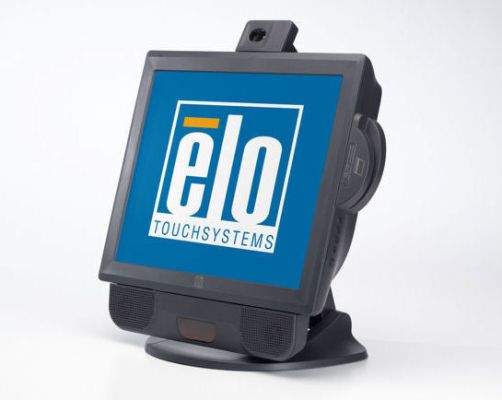

17A2 17" Touchcomputer (Discontinued April 2010)
Overview
Expanded versatility, bigger screen, and improved serviceability, all in a compact design: the 17A2 17" LCD all-in-one touchcomputer provides an attractive ultra-compact 17" touch solution that can fit virtually anywhere in any point-of-service environment.
The 17A2 touchcomputer with dual video display capability includes a choice of touch technologies: AccuTouch® five-wire resistive, IntelliTouch® surface acoustic wave and the company's innovative Acoustic Pulse Recognition (APR) that blends the benefits of all three. Elo touch technologies provide stable, durable touch options that are resistant to scratches and liquids and can be activated in a variety of ways. Also, the 17A2 comes with 1280 x 1024 SXGA resolution and 5:4 aspect ratio to display clear, precise graphics for improved readability.
The space-saving, compact design of the 17A2 touchcomputer offers increased flexibility for easy integration of a variety of optional field-replaceable peripherals, including: three-track magnetic stripe reader (MSR) for credit, ID and loyalty card transactions; customer-facing display to verify those transactions; biometric fingerprint recognition for increased security; 3-watt speaker bar with or without optional single line or omni-directional barcode scanner; and DVD drive. Serviceability is enhanced with easy access to the hard drive and compact flash through a slide-out drawer.
The silent, fanless, spill- and tamper-resistant design of the 17A2 and its compact integrated peripherals, make this touchcomputer an ideal choice for point-of-sale, point-of-service, loyalty systems, kiosk information systems, medical and light industrial, airport security, home control, and Internet access points.
Features
- Small integrated, all-in-one touchcomputer - Saves space, with the same footprint as a standard 17" LCD display, Combining processing with touchscreen to fit virtually anywhere
- Silent, fanless Intel® Celeron® M design - Can be installed and functional in any point-of-service environment, Reliable operation in demanding environments, 2X performance improvement over 1529L based on Passmark Benchmark
- Available with AccuTouch five-wire resistive, IntelliTouch surface-wave, or Acoustic Pulse Recognition touch technology - Choice of touch technology to fit a wide range of applications, Touchscreen sealed from the factory
- Resists dirt, dust and liquid intrusion - "Designed for touch" with a stable, wall/arm VESA mount, and mounting holes on stand bottom for table-top installations or wall mounting, Flexible VESA mounting options–configurable as a desktop or wall-mount, Mounting options to complement store layout and customer traffic
- USB 2.0, serial and cash drawer connectivity - Flexibility to support both legacy and future POS peripherals
- Dual video display capability - Allows attachment of a second touch screen display for digital signage, Scalar support for 800X600, 1024X768 and native 1280X1024 for running legacy applications
- Microsoft® Windows® XP Professional, WEPOS or XP Embedded operating system support - Increases software and peripheral choices offering versatility and compatibility
- On-screen display controls located on the side rather than the front, plus lockout function - Minimizes accidental or intentional changes to the display's controls in a public access environment
- Securable cable cover - Cable management system conceals cables from view providing additional security from tampering, Robust tie-downs for strain relief
- Security lock receptacle - Provides fast, effective, and convenient security in any public and/or point-of-service installation
- User accessible hard drive mounted in slide-out drawer - Easy access and quick upgrades or repairs, lockable with one screw
- Long product life-cycle - Peace of mind that Elo touchcomputers will be available throughout all phases of project rollouts and when future spares are needed
Spécifications
-
Technique
Référence(s)
AccuTouch (Antiglare) - E094342
AccuTouch (Antiglare) - E580906
IntelliTouch (Antiglare) - E144637
IntelliTouch (Antiglare) - E692528Couleur du boîtier
Gris foncé
Technologie et fonctionnalités tactiles
AccuTouch® - Résistant à 5 fils - Touche unique
SAW (ondes acoustiques de surface IntelliTouch®) - Touche uniqueProcesseur
Intel Celeron M 1GHz CPU
BIOS
ACPI 2.0, APM 1.2, SMBIOS 2.4, PXE, WOL
Mémoire vive (RAM)
1 GB DDR2 standard on 1 of 2 slots
Expandable to 2 GB maxDisque dur
1 x 2.5" 160 GB SATA hard drive
Jeu de puces
Intel 915GME/ICH6
Taille de l’écran (diagonale)
Diagonale de 17”, matrice active TFT LCD (LED)
Affichage à l’écran (OSD)
Controls (side): menu, up, down, select, power
Settings: volume, brightness, sharpness, contrast, color temperature, OSD position and orientation, factory reset
Languages: English, French, Italian, German, Spanish
Lockouts: all controlsFormat d’image
5:4
Résolution
1280 x 1024 at 60 Hz (native)
scalar support for 1024 x 768 or 800 x 600 at 60 HzNombre de couleurs
16.7 millions
Luminosité (standard)
LCD panel: 300 nits
AccuTouch: 240 nits
IntelliTouch: 276 nitsTemps de réponse – total (standard)
7.2 msec
Taux de contraste
800:1
Angle de vision
Horizontal: ±80° ou 160° au total / Vertical: ±80° ou 160° au total
Ports E/S
1 x PS/2 universal (default to keyboard compatibility)
Ports USB
4 x USB self powered 2.0
1 (of 4) port is 12V powered USB (1.5A) for POS peripheralsPorts série
2 x RS-232 serial (RJ45, 8 position)
COM2 is RS-232, RS-422 and RS-485 selectablePort Ethernet
1 x LAN RJ45
Port de tiroir-caisse
1 x cash drawer (RJ11, 6 position)
Sortie vidéo supplémentaire
Intel GMA 900 up to 128MB shared
Ports audio
1 x 3.5 mm audio-out
1 x 3.5 mm mic-inSystèmes d'exploitation
Sans système d'exploitation
Windows Embedded for Point of Service (WEPOS)
Windows XP Professional 3Langues
Windows XP – 24 Language groups; WEPOS - 5 language groups
Alimentation électrique
External DC (power brick)
Tension d’entrée
DC: 12 V at 10.0 amps max.
Consommation électrique (standard)
Touchcomputer: 85 W max.
Serial VFD customer display: 5 W max.
USB fingerprint reader: 3 W max.
USB magnetic stripe reader: 1 W max.
USB scanner: 3 W max.
Speaker bar: 7 W max.
DVD drive: 5 W max.
Wireless card/TV tuner: 5 W max.
Total power drawn with all possible peripherals: 105 W max.Dimensions maximales de l’écran tactile sans socle
15.4" x 15.0" x 9.4" / 391 mm x 381 mm x 239 mm
Dimensions du colis d’expédition
Base unit: 17.9" x 20.1" x 9.6" / 455 mm x 510 mm x 245 mm
Unit with peripherals: 20.5" x 20.1" x 9.6" / 520 mm x 510 mm x 245 mmPoids (sans socle)
14.9 lbs / 6.8 kg
Poids (non emballé)
24.0 lbs / 10.9 kg
Poids (emballé)
32.0 lbs / 14.5 kg
Température de fonctionnement
0°C to 35°C / 32°F to 95°F
Température de stockage
-20°C to 60°C / -4°F to 140°F
Humidité
Operating: 20%-80%
Storage: 5%-95%Homologations et déclarations
UL/cUL (recognized component), FCC, CE, VCCI, C-Tick, EN60950
Horloge temps réel
Pile lithium-ion
Temps moyen entre défaillances
50 000 heures démontrées
Options de montage
100 mm VESA mount
Threaded holes on bottom of stand for secure mountingGarantie
3 ans
Câbles d’alimentation
A North American power cable and a European power cable are included. For touchcomputers being shipped to the United Kingdom, add a UK power cable at no cost by specifying part number E235317.
Autres caractéristiques
Accessible hard disk drive, compact flash, miniPCI card
Options de mise à jour
Disque dur 320 Go 5400 tr/min - E274069
Alimentation électrique CC de remplacement
12V DC power brick, part number E114692, is available at additional cost.
Stylet IntelliTouch en option
D82064-000, available at additional cost.
