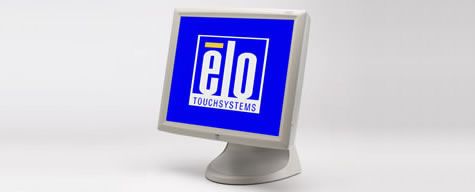

1927L 19" Touchscreen Monitor (Discontinued October 2007)
Overview
The 1927L 19" touchmonitor is the latest addition to the popular Elo desktop line, designed to address the key needs of touch applications requiring a large, visually appealing display. The 1927L can truly be called "designed for touch" with features such as a stable tilt base, OSD controls on the side with lockout feature for public use, speakers, and flexible input/output connectivity, including extra USB connections. It has a unique combination of performance, reliability, installation and ease-of-use, all with distinctive new styling.
Other features.
- High quality panel with 170°x170° viewing angle
- Analog and digital (DVI-D) video inputs, plus S-video input and RCA jack
- Two external USB ports for peripherals
- "Designed for touch" features such as a stable tilt base (-5° from vertical to 90°/horizontal)
- Cables hidden from user's view
- Mounting holes on base bottom for tabletop security
- Base removable or reversible for wall mounting, plus VESA mounting option
- Built-in speakers located in display head
- Available with AccuTouch Five-Wire Resistive Technology or IntelliTouch Surface Wave Technology and serial or USB interface
- Sealed touchscreen
- Controls on the side rather than the front, plus lockout function for public use
- Multilingual on-screen display (OSD) with extras including speaker volume, treble, bass, and balance
- Long-lasting product cycle
- Worldwide agency approvals
Spécifications
-
Technique
Référence(s)
AccuTouch (Serial, Antiglare, Worldwide) - E820608
AccuTouch (USB, Antiglare, Worldwide) - E319464
IntelliTouch (Serial, Antiglare, Worldwide) - E674496
IntelliTouch (USB, Antiglare, Worldwide) - E367777Couleur du boîtier
Beige
Technologie et fonctionnalités tactiles
AccuTouch® - Résistant à 5 fils - Touche unique
SAW (ondes acoustiques de surface IntelliTouch®) - Touche uniqueTaille de l’écran (diagonale)
Diagonale de 19”, matrice active TFT LCD (LED)
Format d’image
5:4
Zone active
14.8" x 11.9" / 376mm x 301mm
Résolution
1280 x 1024
Autres résolutions prises en charge
1280 x 1024 at 60 or 75 Hz
1152 x 864 at 75 Hz
1024 x 768 at 60, 65, 70 or 75 Hz
832 x 624 at 75 Hz (Mac)
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66, 72 or 75 HzAngle de vision
Horizontal: ±85° ou 170° au total / Vertical: ±85° ou 170° au total
Nombre de couleurs
16.7 million, 8-bit per color data
Luminosité (standard)
LCD panel: 300 nits
AccuTouch: 246 nits
IntelliTouch: 276 nitsTemps de réponse – total (standard)
25 msec
Taux de contraste
700:1
Interface tactile
Serial: E820608, E674496
USB: E319464, E367777Affichage à l’écran (OSD)
Digital
Locking OSD and/or powerCommandes d’utilisation
OSD: brightness, contrast, color temperature, H/V position, phase/clock, recall, auto-adjust, input select,
Languages: English, Spanish, German, French, Italian, Swedish, Finnish, Danish, Portuguese, Dutch, JapaneseConnecteur d’entrée audio
Computer audio on 3.5mm stereo mini
Audio for video on dual RCA jacksHaut-parleurs
Two built-in, rear-facing 2W speakers in display head
Format vidéo d’entrée
Digital Video Input (DVI-D), analog, S-Video, NTSC/PAL
Connecteur du signal vidéo d’entrée
DVI-I, RCA, S-Video on monitor
DVI-D, HD-15, S-Video, RCA plugs via cablesConsommation électrique (standard)
40 W
Alimentation électrique
Internal, with jack to accept power from optional external brick
Tension d’entrée
85-265 V, 50-60 Hz and/or 12VDC @ 3.75A (max)
Connecteur d’entrée
Inlets IEC60320-1C6 for AC and 5.5 mm external / 2.5 mm internal coaxial for DC; cords NEMA 15-3 and CEE 7 Schuko
Fréquence d’entrée
Horizontal: 31-80 kHz / Vertical: 56-75 Hz
Sync Types
Separate H & V, composite sync, sync-on-green
Dimensions de l’écran (avec socle)
17.2" x 18.0" x 9.49" / 436mm x 457mm x 241mm
Poids (non emballé)
21.5 lbs / 9.78 kg
Poids (emballé)
30.0 lbs / 13.6 kg
Température de fonctionnement
0°C to 40°C
Température de stockage
-20°C to 60°C
Humidité
Operating: 20%-80%
Storage: 5%-90%
noncondensingTemps moyen entre défaillances
50 000 heures démontrées
Options de montage
100 mm M4 VESA mount
100 mm M5 threaded holes on base bottom for table top security
Removable base
Reversible stand for wall mounting
Stand rotates from -5° (from vertical) to 90° (horizontal)
Locking tilt controlGarantie
3 ans
Durée de vie du rétroéclairage
50,000 hours
Homologations et déclarations
UL, cUL, TÜV-GS, CE, FCC, IC, VCCI, C-Tick Class B, CB Report, Certificate, MPRII, Section 508
Câble d’alimentation CA
North American and European AC power cables are included.
For touchmonitors being shipped to the United Kingdom, add a UK AC power cable at no cost by specifying Elo p/n: E540272.
A replacement North American AC power cable, Elo p/n: C45467-000, is available at additional cost.
AC power cables for power brick are also available at additional cost:
United States: Elo p/n: E042259
Europe: Elo p/n: E690013
United Kingdom: Elo p/n: E235317Bloc d’alimentation électrique en option
The monitor may also be powered with DC voltage. An optional 12V DC power brick, Elo p/n: E034907, is available at additional cost.
Stylet IntelliTouch en option
Stylus pen with rubber tip, designed specifically for use with IntelliTouch SAW touch technology. Elo p/n: D82064-000, available at additional cost.
Câbles tactiles/vidéo
Detachable touch and video cables are included. A replacement DVI-I to Analog video cable, Elo p/n: E38043-000, is available at additional cost.
Périphériques en option
Lecteur de bande magnétique (MSR) - Réf. Elo: E039290
